STEAM DEMAND STABILITY

Steam accumulators for plants with short demand peaks and pressure stability targets.

A steam accumulator stores energy in pressurized hot water and releases flash steam when the process briefly demands more vapor than the boiler is expected to deliver continuously.

Request a Quote Talk to an Engineer Request accumulator file

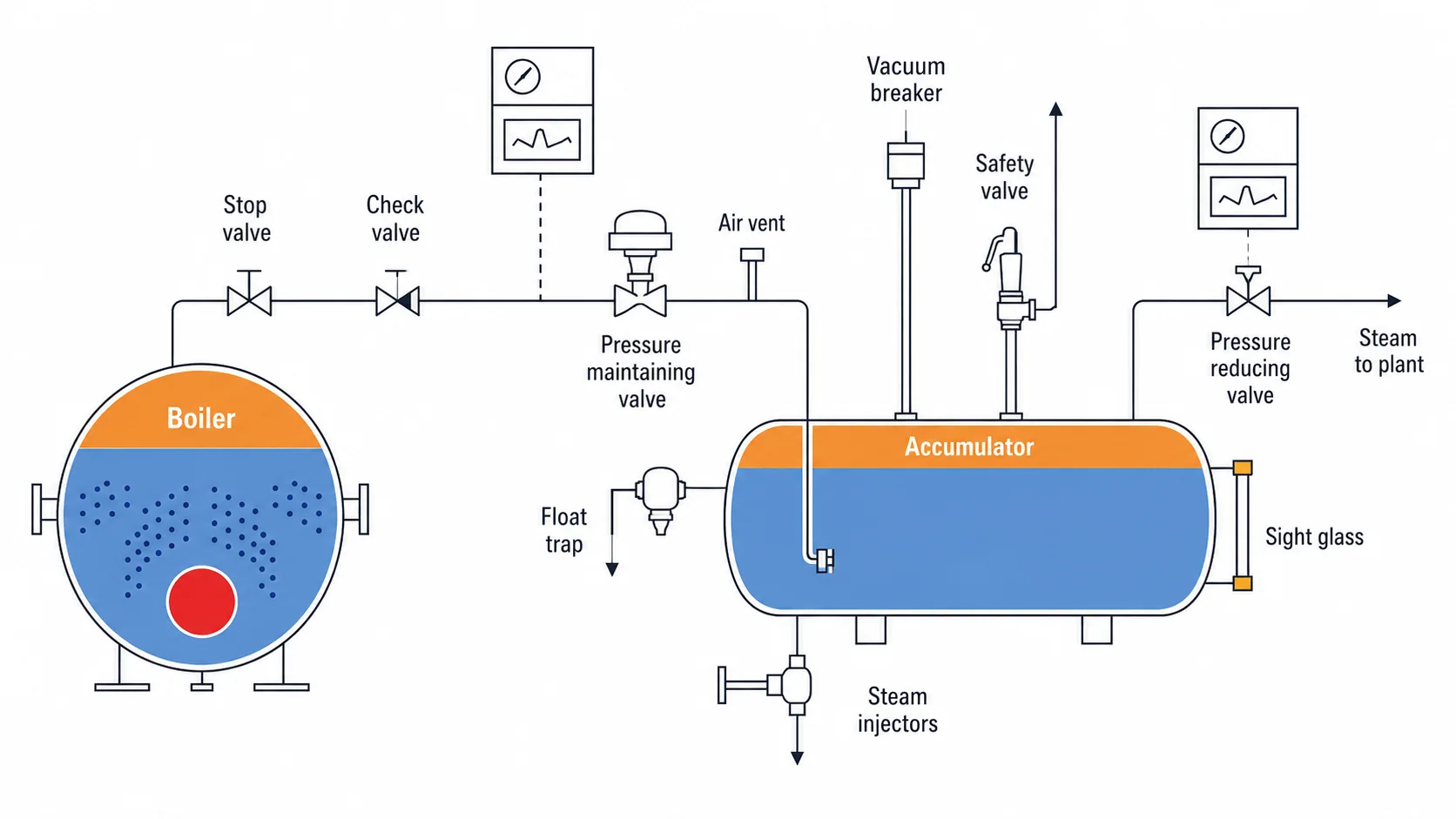

Reference arrangement: boiler production, accumulator storage, pressure-maintaining valve and pressure-reducing valve to the plant.

ENGINEERING SNAPSHOT

A buffer between boiler output and short process peaks, specified from the real demand curve.

Sizing depends on the pressure band, overload duration, useful water volume, recharge time and the downstream steam route.

Best fit: Short steam-demand peaks
Typical scope: Vessel, valves, vents, safety devices and injector logic
Decision point: Peak duration, minimum pressure and recharge window

Steam injector logic inside accumulator vessel

PEAK SHAVING PRESSURE STABILITY

Why the accumulator belongs in the boilerhouse conversation early

Some plants do not need a larger boiler for the full day; they need a stable way to absorb short process openings without collapsing steam pressure or oversizing the whole steam island.

The useful question is not only peak flow, but how long the peak lasts.
Minimum acceptable plant pressure defines how much stored energy can be used.
The recharge period must be compatible with the production rhythm after each peak.

What the catalog treats as core operation

The accumulator is not only a tank. It is a pressure-controlled energy buffer with steam injection, storage volume, safety accessories and valve logic around the steam distribution route.

Produced steam can pass through the accumulator in a common arrangement, but other layouts may be evaluated.
Pressure-maintaining and pressure-reducing valves are part of the system behavior.
Safety, venting, vacuum protection and level control must be specified with the vessel.

How the sizing conversation starts

A reliable selection starts with the load curve and operating pressures. Without that, the accumulator can be either too small to help or larger than the project really needs.

Boiler capacity and normal working pressure.
Peak demand, peak duration and minimum acceptable plant pressure.
Recharge time, downstream piping and valve-control philosophy.

Typical boilerhouse interfaces

The useful scope is the complete pressure-stability package around the vessel, not only the shell.

Pressure-maintaining valve

Protects charging pressure and helps define when stored energy is preserved or released.

Pressure-reducing valve

Feeds the plant at the required pressure while the accumulator discharge follows the process peak.

Safety and venting

Safety valves, vents and vacuum protection belong to the same technical decision.

Level and injection logic

Sight glass, level instruments, drains and injectors make the storage volume usable and inspectable.

When this component matters

A steam accumulator becomes relevant when the process has repeatable short peaks, pressure dips, batch openings, sterilization cycles, or equipment that demands high steam flow for a limited time.

What helps engineering respond

Send the current boiler capacity, operating pressure, minimum pressure tolerated by the plant, peak-flow estimate, duration of each peak and frequency per hour or shift.
