STEAM BOILER (WATER-TUBE)

JPO water-tube boiler for high-pressure superheated steam.

Designed for critical process plants, JPO combines compact D-type water-tube architecture, positive circulation, configurable superheaters, and low-NOx firing to support high-pressure steam projects with export-ready documentation.

Request a Quote Talk to an Engineer Calcular vazão e pressão Standard automation: SteamLogix-OG

WHERE JPO FITS

A high-pressure route for teams that need more than a standard packaged boiler.

JPO becomes relevant when a project depends on pressure duty, superheated steam control, transport discipline, and a documentation package that can move from early qualification to EPC discussion without losing engineering context.

Application scope

  • Petrochemical, refinery, and process steam duty requiring higher pressure or superheated steam.
  • Compact water-tube architecture for transport, installation, and plot-plan constraints.
  • Integration with low-NOx burners, controls, economizers, superheaters, and boilerhouse auxiliaries.

Technical envelope

Steam capacity5,000 to 140,000 kg/h
PressureUp to 45 bar, scope dependent
Steam conditionSaturated or superheated steam up to 450 C
Firing pathLow-NOx gas or liquid fuel burners, project-specific

Preliminary JPO qualification

JPO selection should be confirmed by engineering because pressure, superheat temperature, fuels, circulation, controls, and project logistics influence the final package.

  • Confirm steam flow, operating pressure, and required superheat temperature.
  • Define fuel strategy, burner scope, emission limits, and expected turndown.
  • Review transport envelope, access corridors, boilerhouse interfaces, and export documentation.
Request a Quote Talk to an Engineer

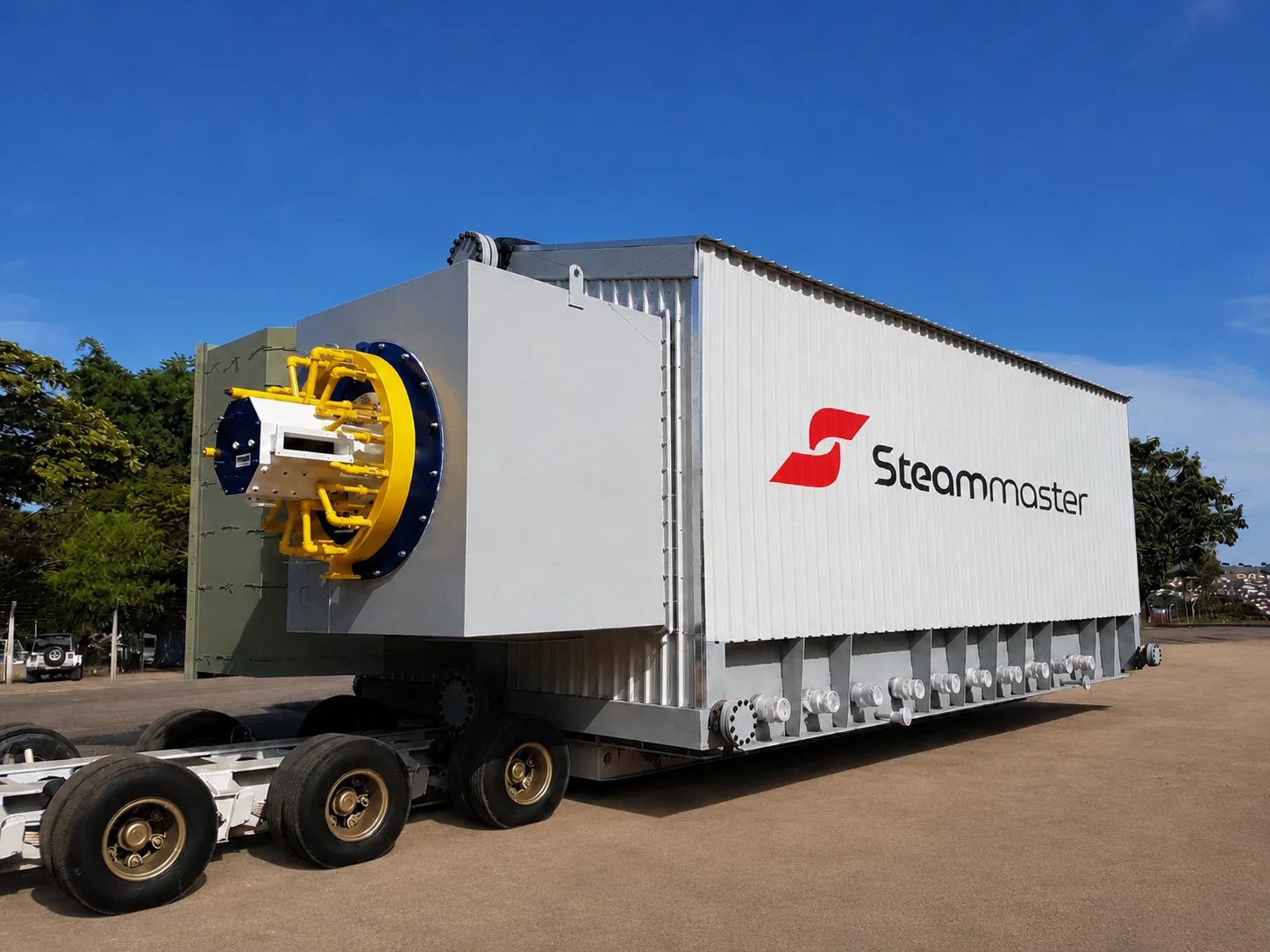

JPO water-tube boiler prepared for transport with burner front and Steammaster side panel

Loading 3D model...

Orbit, zoom and inspect the JPO package from the main pressure-part, access, burner, and plot-plan angles.

Interactive 3D

Interactive JPO layout review

Use this model to review the D-type water-tube arrangement, burner-side access, superheater area, and transport footprint before detailed engineering and EPC discussion.

  • Use the left mouse button to rotate and the right button to move the model, then adjust the zoom.
  • Need a broader immersive review? Open the full 3D viewer. Open 3D Viewer
Discuss this configuration Open JPO files

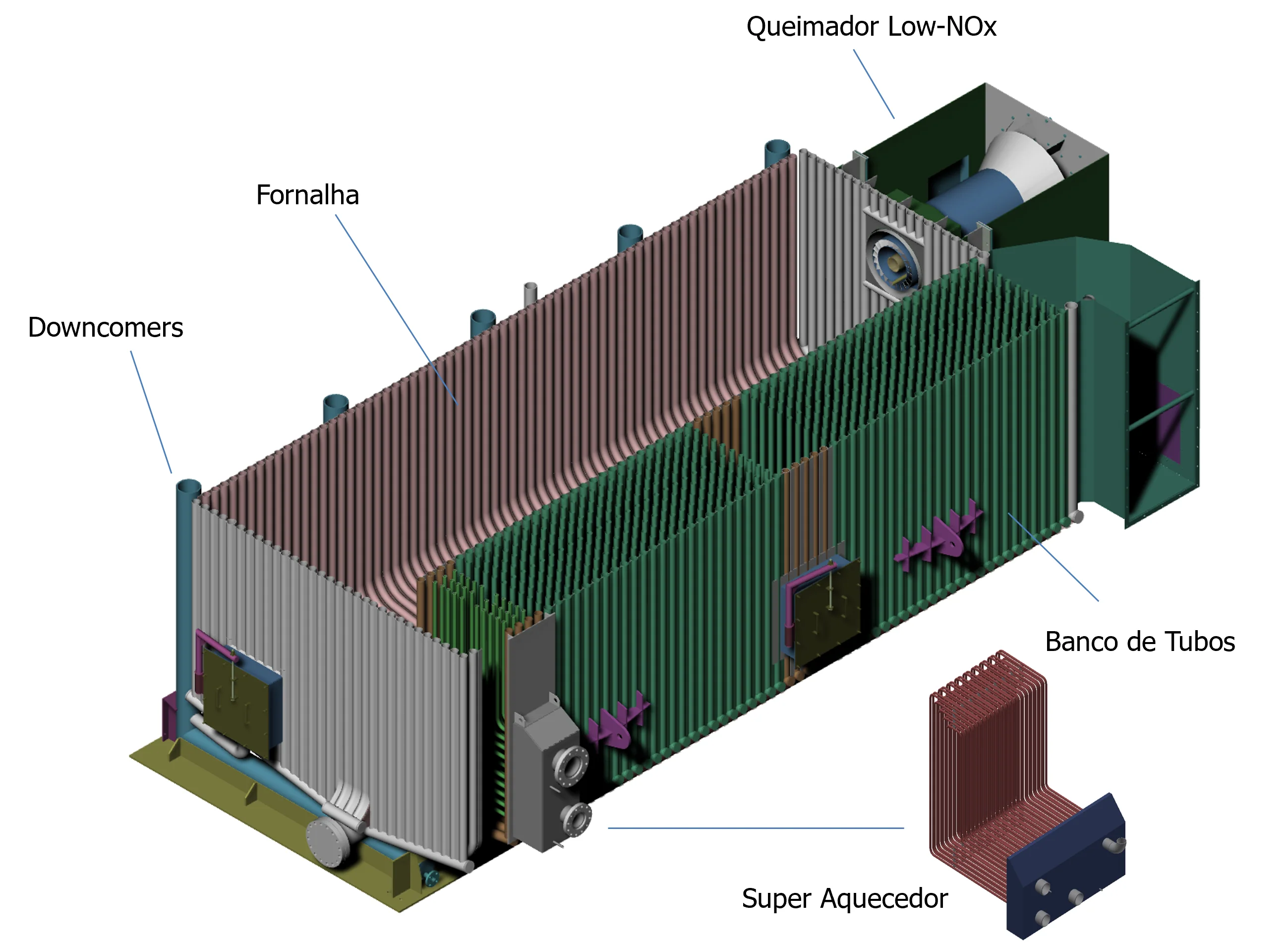

JPO water-tube boiler diagram with burner, furnace, downcomers, tube bank, and superheater callouts

Numbered components

  • 01 - Low-NOx burner interface
  • 02 - Waterwall furnace for high heat-release duty
  • 03 - Downcomers and positive circulation path
  • 04 - Convection tube bank for heat transfer recovery
  • 05 - Configurable superheater module
  • 06 - Access and inspection points defined by project scope

Water-tube pressure duty

  • Single-drum D-type architecture with engineered risers and downcomers.
  • Waterwall construction reduces refractory dependence in high heat-release areas.
  • Steam/water separation internals are matched to the final duty.

Superheated steam control

  • Single or dual superheater arrangements can be configured by project scope.
  • Temperature control strategy is aligned with process and fuel behavior.
  • Low steam velocity distribution supports superheated applications.

Burners, controls, and safety

  • Low-NOx burner scope is sized according to fuel, emissions, and turndown needs.
  • PLC-based boiler and burner management can support 1/2/3-element control strategies.
  • Safety and instrumentation architecture is defined by project risk and scope.

Execution and export package

  • Transport envelope and lifting/access logic are reviewed early.
  • Engineering documentation can include GA references, pressure-part records, controls, and inspection scope.
  • Boilerhouse auxiliaries can be aligned with deaerators, pumps, economizers, and emission systems.
JPO high-pressure water-tube boiler prepared for transport and project execution
